  • Wide-angle, ultra-bright LED’s (can be viewed in sunlight)
  • Long operational life – typically 60,000 hours
  • 7 red LED’s located around the reflector
  • High operational safety – failure of individual LED’s does not affect others
  • Low LED battery consumption giving up to 20 hours signalling
  • Coloured changeover switches
  • Powerful halogen spotlight gives up to 3-5 hours duration
  • Optional low battery indicator (20 mins warning)
  • Interchangeable battery cassette
  • Integral belt clip
  • Accessories including a bracket which can also incorporate a handle for attaching the lamp to the rear of railway carriages in an emergency.

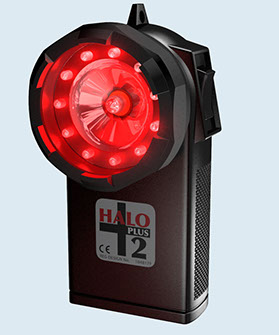

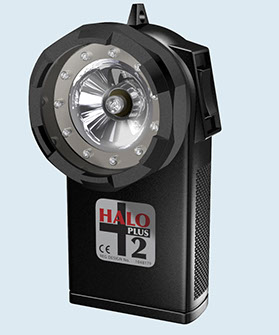

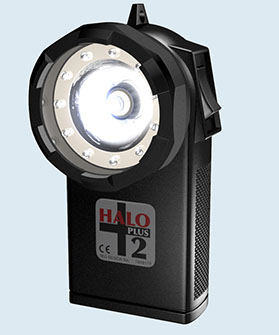

Halo Plus2™

HP-11R Personal Signalling Lamp

Dimensions

Compact and light weigh design (400g including batteries)

Battery Specifications

The interchangeable battery cassette houses 3x standard size  'C" cells.

Battery Type & Capacity

Rechargeable Ni-Cad

Ni-MH 2.2Ah, 3.3Ah

Alkaline MN1400

Halogen Spotlight

3 hrs

4¼ hrs

5 hrs

LED Signal

15 hrs

15 hrs

20 hrs

Charging Options

There are two types of battery chargers, all are available for single torch or 5-way charging and suitable for 110/230V AC mains operation, 10-30V DC or 12/24V DC charging, the latter having automatic cut out to prevent flattening the vehicle battery.

The Standard Range – 14-16 hours charging time

Part No.

HP-13

HP-14

HP-15

HP-16

HP-17

HP-18

HP-19

Model Type

230V Charger Wall Mounted

230V Charger Plug-in UK 3 Pin or 2 Pin Euro

12V Charger Wall Mounted Auto cut-out

24V Charger Wall Mounted Auto cut-out

5 Way 230V Charger Wall Mounted

5 Way 12V Charger Wall Mounted Auto cut-out

5 Way 24V Charger Wall Mounted Auto cut-out

Weight

400g

400g

260g

260g

2.15Kg

1.5Kg

1.5Kg









   Charger auto sensing of vehicle battery – switches charger off if vehicle battery voltage gets too low.

The Hi-Tech Range – 10 hours charging time

The Hi-Tech Range will extend battery life (by up to 60%), increase the available capacity (giving a longer duration of light) and eliminate the possibility of memory effect. This is achieved by the use of a specially designed electronic pulse charger circuit controlled by a microprocessor. The result is multistage software regulated charging which is sensitive to the batteries' requirements. The first stage is a timed accelerated charge for 8 hours that will achieve 95% of the capacity at 10° C.

Part No.

HP-13 HTS (2.2/ 1.5Ah)

HP-14 HTS (2.2/ 1.5Ah)

HP-15 HTS (2.2/ 1.5Ah)

HP-16 HTS (2.2/ 1.5Ah)

HP-15/16 HTS (2.2/ 1.5Ah)

HP-17 HTS (2.2/ 1.5Ah)

HP-18 HTS (2.2/ 1.5Ah)

HP-19 HTS (2.2/ 1.5Ah)

HP-18/19 HTS (2.2/ 1.5Ah)

Model Type

230V Pulse Charger Wall Mounted

230V Pulse Charger Plug-in UK 3 Pin or 2 Pin Euro

12V Pulse Charger Wall Mounted Auto cut-out

24V Pulse Charger Wall Mounted Auto cut-out

10-30V Pulse Charger Wall Mounted

5 Way 230V Pulse Charger Wall Mounted

5 Way 12V Pulse Charger Wall Mounted Auto cut-out

5 Way 24V Pulse Charger Wall Mounted Auto cut-out

5 Way 10-30V Pulse Charger Wall Mounted

Weight

400g

400g

260g

260g

260g

2.15Kg

1.5Kg

1.5Kg

1.5Kg











   Charger auto sensing of vehicle battery – switches charger off if vehicle battery voltage gets too low.

Options and Accessories

Part No.

add ‘V’ to Part No.

HP-30

HP-51

HP-50+S

HP-41

HP-42



Low Voltage Indicator

Lanyard

Wrist Strap with Velcro Fastening

Canvas Harness with Belt for Hands-free Working

Bracket for Mounting on Rail Carriage

Bracket for Mounting on Rail Carriage with Handle
